Color
Natural
Orientation
Right-Hand
Product Name

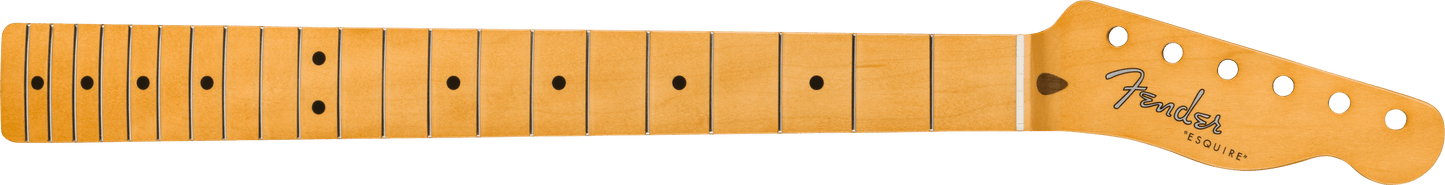

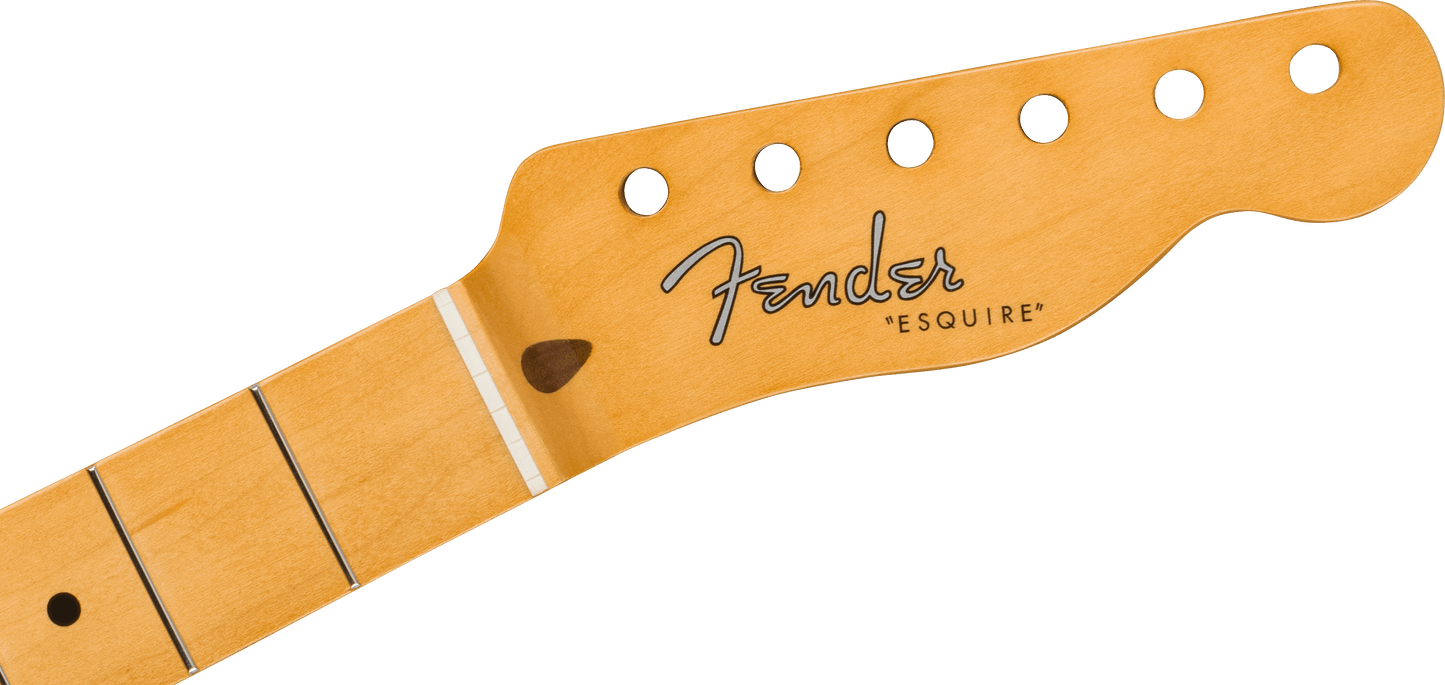

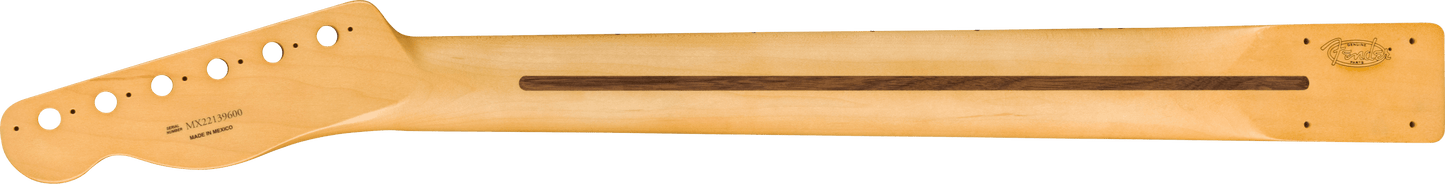

50's Esquire Neck, 21 Vintage Frets, 7.25", U Shape, Maple
Series
Classic
50's Esquire® Neck, 21 Vintage Frets, 7.25", U Shape, Maple
Regular price
489,00 €
Regular price
489,00 €
489,00 €
Sale price
Unit price
per
inc. VAT*
50's Esquire® Neck, 21 Vintage Frets, 7.25", U Shape, Maple
50's Esquire® Neck, 21 Vintage Frets, 7.25", U Shape, Maple
Regular price
489,00 €
Regular price
489,00 €
489,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 100€. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
The Esquire® is the predecessor to the Telecaster® and the very first solid-body electric guitar offered by Fender®. The Esquire® neck features a "U"-shaped neck profile for the substantial fret-hand feel typical of instruments from our original decade.
Fender® replacement necks are made at Fender® manufacturing facilities to the same specifications as those used on our instruments. This Ensenada, Mexico-made Esquire® neck features a maple fingerboard, a 7.25" radius and 21 vintage-style frets. The one-piece maple neck has an early 50's "U" profile with a smooth satin urethane finish on the back of the neck. The headstock has a gloss finish with an authentic "Esquire®" decal to complete the classic look.
The bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, with genuine headstock logo decal.
This replacement neck is for a Fender® or Squier® by Fender® guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- One-piece maple neck with walnut "skunk" stripe
- Maple fingerboard with 7.25" radius
- 21 vintage-style frets
- Pre-slotted bone nut
- Vintage-style truss rod with heal adjust
- Six pre-drilled tuning machine holes
General
Hardware
Tuner Mounting Config
Vintage-Style 2-Screw
Measurements
Fret Size
Vintage-Style
Fret Wire Dimensions
0.084" (H) x 0.039" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.358" (9.09 mm)
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Maple
Fingerboard Radius
7.25" (184.1 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Early '50s "U"
Neck Thickness
1st Fret - .880” (22.35 mm), 12th Fret - .990” (25.15 mm)
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Bone
Truss Rod
Vintage-Style Heel Adjust
Truss Rod Nut
Vintage-Style Slotted
