Color
Natural
Orientation
Right-Hand
Product Name

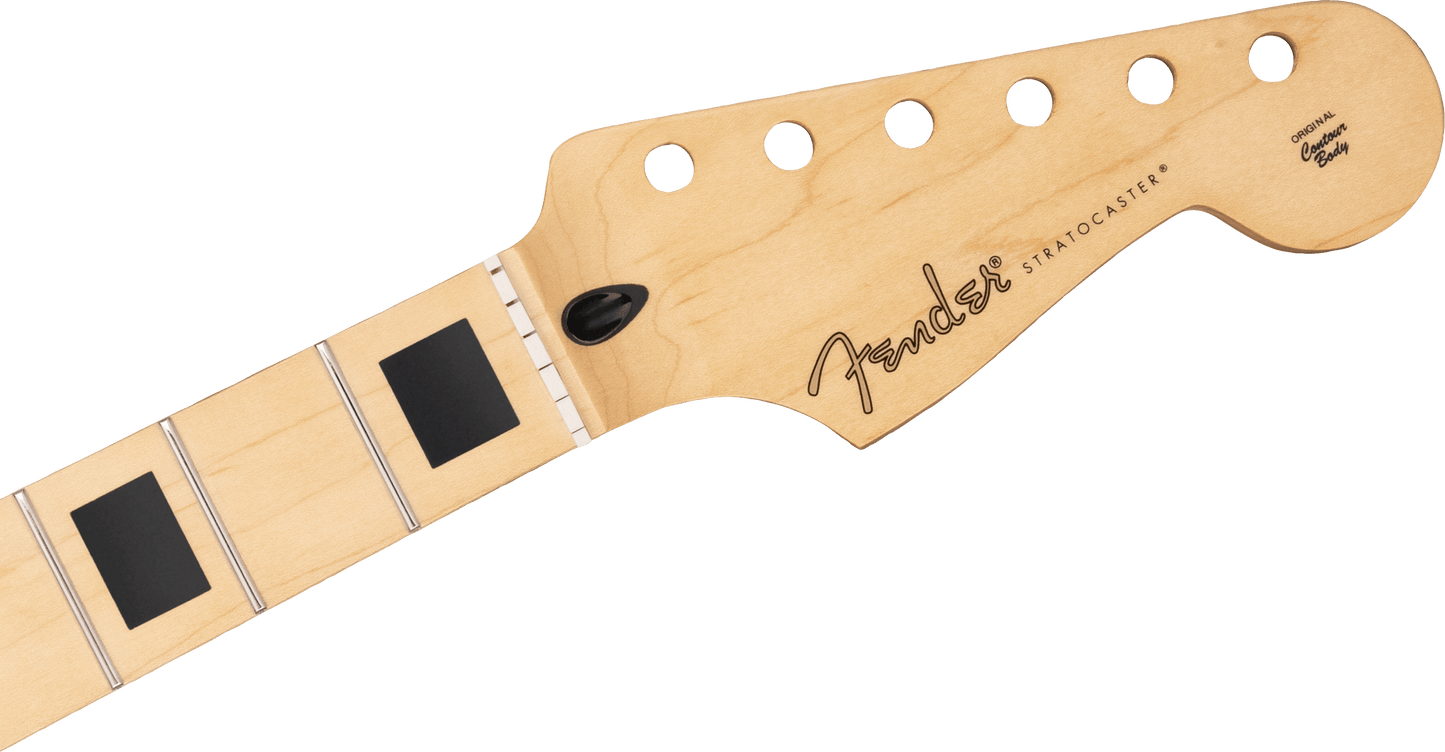

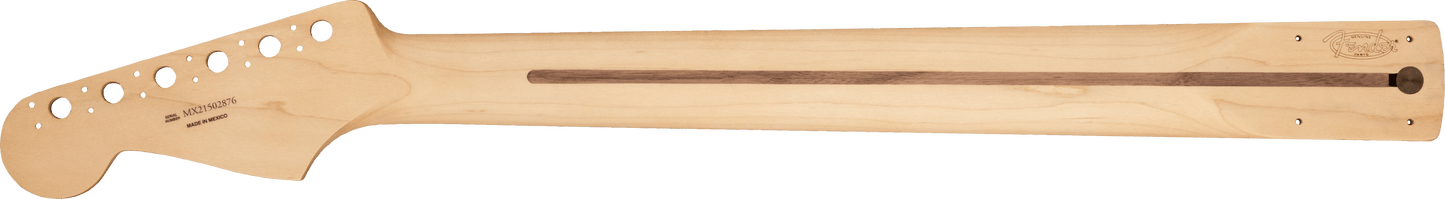

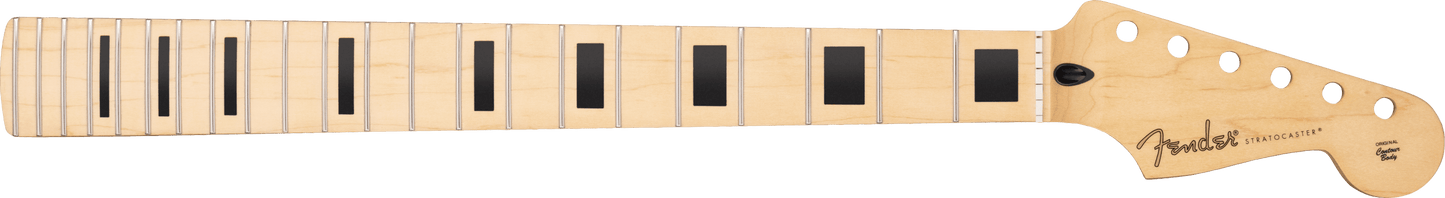

Player Series Stratocaster® Neck w/Block Inlays, 22 Medium Jumbo Frets, Maple
Series
Fender® Parts
Player Series Stratocaster® Neck w/Block Inlays, 22 Medium Jumbo Frets, Maple
Regular price
469,00 €
Regular price
469,00 €
469,00 €
Sale price
Unit price
per
inc. VAT*
Player Series Stratocaster® Neck w/Block Inlays, 22 Medium Jumbo Frets, Maple
Player Series Stratocaster® Neck w/Block Inlays, 22 Medium Jumbo Frets, Maple
Regular price
469,00 €
Regular price
469,00 €
469,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 100€. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
Add a touch of style to your guitar with a Player Series neck featuring block inlays. For modern playability with a throwback vibe, these necks have all the features of the Players Series instruments but with block inlays that make them stand out in a crowd.
Fender replacement necks are made at Fender manufacturing facilities to the same specifications as those used on our instruments. This Ensenada, Mexico-made Stratocaster neck features a maple fingerboard with black block inlays, a 9.5" radius and 22 medium jumbo frets. The maple neck has a comfortable Modern C neck profile that is comfortable for almost any playing style.
The synthetic bone nut is pre-slotted with "pilot" string location grooves to make spacing a breeze when performing the final string slot filing. For true Fender authenticity, it's also serialized and stamped, with genuine headstock spaghetti logo decal.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Maple fingerboard with black block inlays
- 9.5" radius with 22 medium jumbo frets
- Modern C neck profile
- Satin urethane finish on back of neck with gloss urethane on front
- Pre-slotted synthetic bone nut
- Six two-guide-pin tuning machine holes
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back, Gloss Urethane Finish on Front
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Block
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
